Authorized Philippine Distributor

Derbarzt BnT
Implant System Better Fit & Tunes · HUB Biotech, Korea · 2026

Insertion Performance at Your Fingertips

Digiscope brings the Derbarzt BnT Implant System to Philippine dental clinics. Choose S1 Strong or S2 Smooth — both on the same internal hex 11° Morse taper body with double taper design, sharp apex, and optimized SLA surface.

View BnT Line-up Request Consultation

S1 · Strong

S2 · Smooth

11° Morse Taper · Internal Hex

ISQ ≥ 60 · Self-tap 3mm in D2

Narrow Neck · Cortical Protection

Sharp Apex · Min. Root Interference

BnT Implant System

Superior Insertion Performance

BnT — Better Fit & Tunes — is Derbarzt's 2026 flagship tapered implant. Submerged type, internal hex, 11° Morse taper. Two thread profiles, one unified prosthetic system.

🎯

Reliable Initial Stability

ISQ ≥ 60. Self-tapping up to 3mm in D2 bone without additional drilling — fewer surgical steps and reduced procedure time.

🦴

Narrow Neck Design

Minimizes cortical stress concentration and improves crestal bone stability over the long term.

⚡

Double Taper Body

Dual-taper design for immediate placement. Progressive compression enhances initial stability — ideal for immediate and early loading protocols.

📍

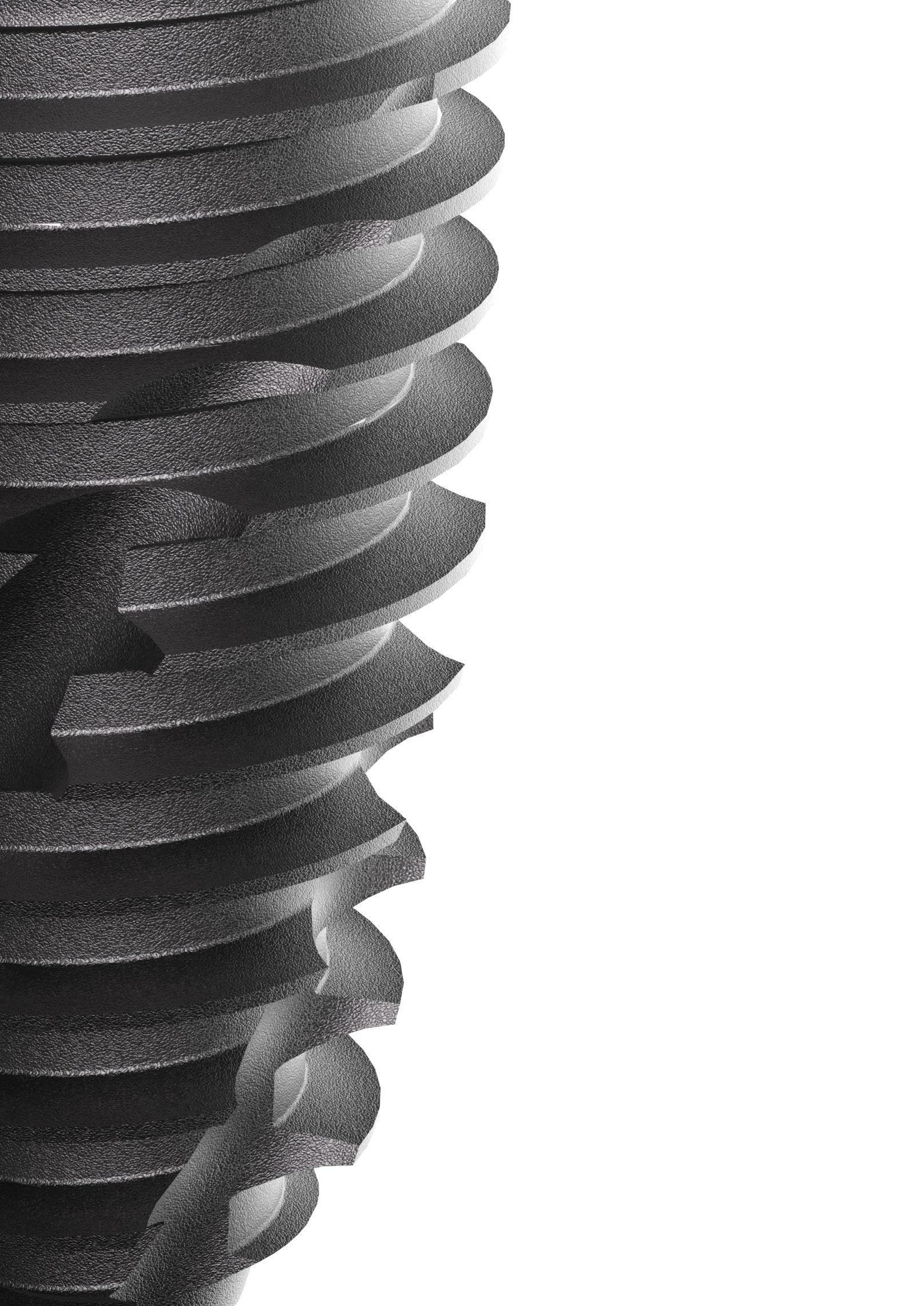

Sharp Apex Design

Minimizes root interference and reduces risk of adjacent root damage — suitable for anterior and premolar placement.

🔬

Optimized SLA Surface

Eco-friendly automated blasting and acid etching. Biocompatible SLA surface for superior osseointegration. Air-floating ampule packaging ensures zero contamination.

Internal Hex11° Morse Taper Double Taper BodySingle Thread SLA SurfaceAir-Floating Ampule Cover Screw Included

Insertion Types

S1 Strong or S2 Smooth — Your Choice

Same submerged implant body, same connection, same prosthetics. The thread profile and cutting edge define the surgical experience.

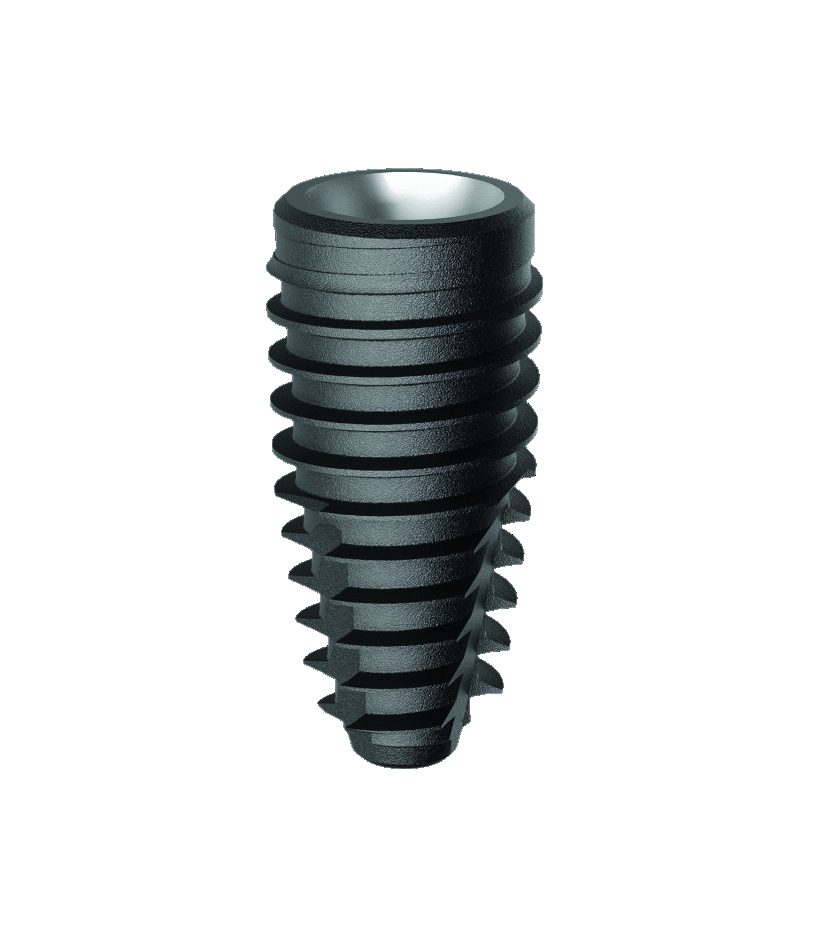

Strong Type

Strong Insertion Performance

Thread Depth0.3 – 0.4mm

Cutting EdgeStraight

Insertion FeelFirm & Powerful

Bone ChipEnlarged Pocket

Sharp Thread — minimizes bone removal after drilling

Straight Cutting Edge — superior downward cutting ability with expanded chip pocket

Firm, clearly perceptible tactile feedback during placement

For surgeons who prefer strong, controlled torque feedback

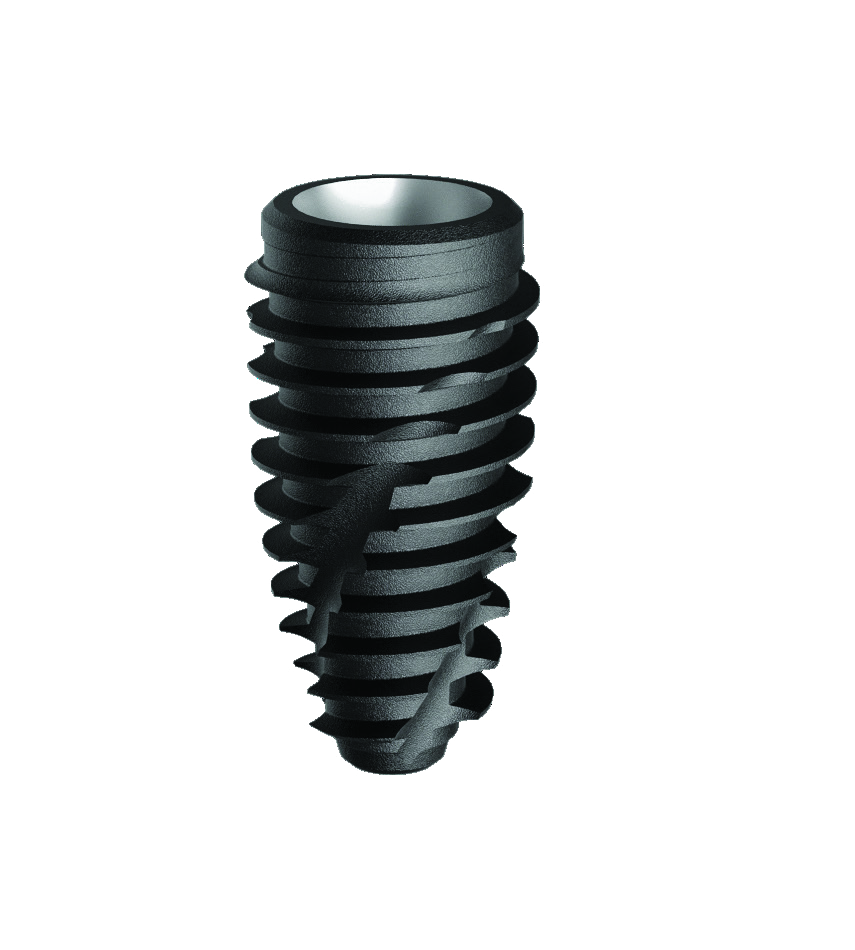

Smooth Type

Smooth Insertion Performance

Thread Depth0.5 – 0.65mm

Cutting EdgeHelix

Insertion FeelSmooth & Consistent

Bone ChipOrganic Flow

Sharp & Power Thread — 0.5–0.65mm depth adds stability via wider surface area

Helix Cutting Edge — maximizes self-tapping and promotes smooth bone chip distribution

Smooth, consistent resistance throughout the entire placement stroke

Deep thread structure ensures continuous, stable resistance

2026 Official Product Codes

BnT Implant Line-up

4 nominal diameters · 5 lengths · S1 and S2 types. All codes from the 2026 Derbarzt BnT catalogue.

Ø3.5

PlatformMini

Hex2.1mm

Max Ø S1Ø4.0mm

Max Ø S2Ø4.4mm

Lengths8.5 / 10 / 11.5 / 13mm

ColorYellow

Length	Type	Max Diameter	Product Code	Connection
8.5mm	S1	Ø4.0mm	BNT3508S1H	Mini Hex 2.1mm
8.5mm	S2	Ø4.4mm	BNT3508S2H	Mini Hex 2.1mm
10mm	S1	Ø4.0mm	BNT3510S1H	Mini Hex 2.1mm
10mm	S2	Ø4.4mm	BNT3510S2H	Mini Hex 2.1mm
11.5mm	S1	Ø4.0mm	BNT3511S1H	Mini Hex 2.1mm
11.5mm	S2	Ø4.4mm	BNT3511S2H	Mini Hex 2.1mm
13mm	S1	Ø4.0mm	BNT3513S1H	Mini Hex 2.1mm
13mm	S2	Ø4.4mm	BNT3513S2H	Mini Hex 2.1mm

Ø4.0

PlatformRegular

Hex2.5mm

Max Ø S1Ø4.4mm

Max Ø S2Ø4.7mm

Lengths7 / 8.5 / 10 / 11.5 / 13mm

ColorGreen

Length	Type	Max Diameter	Product Code	Connection
7mm	S1	Ø4.4mm	BNT4007S1H	Regular Hex 2.5mm
7mm	S2	Ø4.7mm	BNT4007S2H	Regular Hex 2.5mm
8.5mm	S1	Ø4.4mm	BNT4008S1H	Regular Hex 2.5mm
8.5mm	S2	Ø4.7mm	BNT4008S2H	Regular Hex 2.5mm
10mm	S1	Ø4.4mm	BNT4010S1H	Regular Hex 2.5mm
10mm	S2	Ø4.7mm	BNT4010S2H	Regular Hex 2.5mm
11.5mm	S1	Ø4.4mm	BNT4011S1H	Regular Hex 2.5mm
11.5mm	S2	Ø4.7mm	BNT4011S2H	Regular Hex 2.5mm
13mm	S1	Ø4.4mm	BNT4013S1H	Regular Hex 2.5mm
13mm	S2	Ø4.7mm	BNT4013S2H	Regular Hex 2.5mm

Ø4.5

PlatformRegular

Hex2.5mm

Max Ø S1Ø4.7mm

Max Ø S2Ø5.0mm

Lengths7 / 8.5 / 10 / 11.5 / 13mm

ColorBlue

Length	Type	Max Diameter	Product Code	Connection
7mm	S1	Ø4.7mm	BNT4507S1H	Regular Hex 2.5mm
7mm	S2	Ø5.0mm	BNT4507S2H	Regular Hex 2.5mm
8.5mm	S1	Ø4.7mm	BNT4508S1H	Regular Hex 2.5mm
8.5mm	S2	Ø5.0mm	BNT4508S2H	Regular Hex 2.5mm
10mm	S1	Ø4.7mm	BNT4510S1H	Regular Hex 2.5mm
10mm	S2	Ø5.0mm	BNT4510S2H	Regular Hex 2.5mm
11.5mm	S1	Ø4.7mm	BNT4511S1H	Regular Hex 2.5mm
11.5mm	S2	Ø5.0mm	BNT4511S2H	Regular Hex 2.5mm
13mm	S1	Ø4.7mm	BNT4513S1H	Regular Hex 2.5mm
13mm	S2	Ø5.0mm	BNT4513S2H	Regular Hex 2.5mm

Ø5.0

PlatformRegular

Hex2.5mm

Max Ø S1Ø5.0mm

Max Ø S2Ø5.6mm

Lengths7 / 8.5 / 10 / 11.5 / 13mm

ColorRed

Length	Type	Max Diameter	Product Code	Connection
7mm	S1	Ø5.0mm	BNT5007S1H	Regular Hex 2.5mm
7mm	S2	Ø5.6mm	BNT5007S2H	Regular Hex 2.5mm
8.5mm	S1	Ø5.0mm	BNT5008S1H	Regular Hex 2.5mm
8.5mm	S2	Ø5.6mm	BNT5008S2H	Regular Hex 2.5mm
10mm	S1	Ø5.0mm	BNT5010S1H	Regular Hex 2.5mm
10mm	S2	Ø5.6mm	BNT5010S2H	Regular Hex 2.5mm
11.5mm	S1	Ø5.0mm	BNT5011S1H	Regular Hex 2.5mm
11.5mm	S2	Ø5.6mm	BNT5011S2H	Regular Hex 2.5mm
13mm	S1	Ø5.0mm	BNT5013S1H	Regular Hex 2.5mm
13mm	S2	Ø5.6mm	BNT5013S2H	Regular Hex 2.5mm

Clinical Workflow

BnT Prosthetic Flow

Conventional and digital paths — impression copings, scan bodies, MUA scanbody kit. Prosthetically compatible with BnS and other 11° Morse taper systems.

Implant Placement

Drill sequence: Ø2.2 lance → stopper drill (F3.5–F5.0) → cortical drill. Connect implant driver H.P to handpiece. Cover screw included with every implant.

Healing Phase

Cover screw (Mini: BNSCS35, Regular: BNSCS40) or Healing Abutment placed. Select height H per placement depth. Tighten manually with 1.2 Hex Driver.

Impression or Scan

Pick-up / Transfer Impression Coping (Hex or Non-Hex). For digital: ScanBody or Reverse ScanBody. Full-arch: MUA ScanBody Kit UEDSBK — 10μm precision, universal IOS.

Abutment Selection

Choose Temporary, Cemented, Milling, Pre-Milled, or Angled Abutment (A/B/Non-Hex). 15° angled option for divergent axes.

Final Restoration

Abutment screw (BNSABSM Mini / BNSABSS Regular) tightened with 1.2 Hex Driver. BnT is fully compatible with BnS prosthetics and all 11° Morse taper systems.

🔩

Cover & Abutment Screws

Mini BNSCS35/M/L
Regular BNSCS40SG/MG/LG
Abutment: BNSABSM · BNSABSS

🦷

Healing Abutments

Mini Ø4.0–4.5 × H3–9mm
Regular Ø4.0–8.0 × H3–9mm
1.2 Hex Driver, manual only

📡

MUA ScanBody Kit

UEDSBK: Flag, Gingiva, Bite Table. 10μm tolerance. Universal IOS integration for full-arch cases.

🧰

BnT Standard KIT

BNTSDK — stopper drills F3.5–F5.0, lance drill, tissue punch, cortical drills, drivers, torque wrench, depth gauge.

Implant Components

Cover Screws, Healing Abutments & Surgical Kit

All codes from the 2026 BnT catalogue. Contact Digiscope for Philippine pricing and availability.

Cover Screws

Select height per implant placement depth. Dedicated cover screw for Ø3.5 Mini. Tighten manually with 1.2 Hex Driver.

Mini H0.4mmBNSCS35

Mini H1.4mmBNSCS35M

Mini H2.0mmBNSCS35L

Regular H0.4mmBNSCS40SG

Regular H1.4mmBNSCS40MG

Regular H2.0mmBNSCS40LG

Abutment Screw MiniBNSABSM

Abutment Screw RegularBNSABSS

Healing Abutments — Mini

For Ø3.5 implants. D = diameter, H = height (mm). Tighten manually with 1.2 Hex Driver only.

Ø4.0 × H3mmBNSHA403M

Ø4.0 × H4mmBNSHA404M

Ø4.0 × H5mmBNSHA405M

Ø4.5 × H3mmBNSHA453M

Ø4.5 × H5mmBNSHA455M

Ø4.5 × H7mmBNSHA457M

Ø4.5 × H9mmBNSHA459M

Healing Abutments — Regular + KITs

For Ø4.0–5.0 implants. Range Ø4.0–8.0 × H3–9mm. Plus surgical and scan body kits.

Ø4.0 × H3mm RegularBNSHA403R

Ø5.0 × H5mm RegularBNSHA505R

Ø6.0 × H5mm RegularBNSHA605R

Ø7.0 × H5mm RegularBNSHA705R

Ø8.0 × H5mm RegularBNSHA805R

BnT Standard KITBNTSDK

MUA ScanBody KitUEDSBK

BnT

Why Choose Us

Derbarzt Quality.
Digiscope Support.

KFDA & ISO 13485 Certified

HUB Biotech operates under Korea FDA (MFDS) approval and ISO 13485. Annual CNC capacity of 1 million implants with full in-house SLA surface treatment and multi-stage cleaning.

S1 or S2 — Your Choice

No other system offers two distinct insertion experiences on the same implant body. S1 for firm tactile control, S2 for smooth placement. Identical prosthetics for both.

Air-Floating Ampule

BnT's unique packaging keeps the implant from touching the ampule interior. Diagonal rotation separates it cleanly — zero contamination risk from factory to patient.

BnS Prosthetic Compatibility

BnT shares the 11° Morse taper with BnS. Clinics already using BnS adopt BnT with zero prosthetic inventory disruption.

Full Digital Workflow

ScanBody, Reverse ScanBody, Digital Lab Analog, and the all-in-one MUA ScanBody Kit (UEDSBK) integrate with major IOS platforms at 10μm precision.

Digiscope Local Support

Authorized Philippine distributor. Local inventory, clinical case support, S1/S2 sample kits, hands-on training, and fast delivery for active practices nationwide.

Implant Stability Measurement

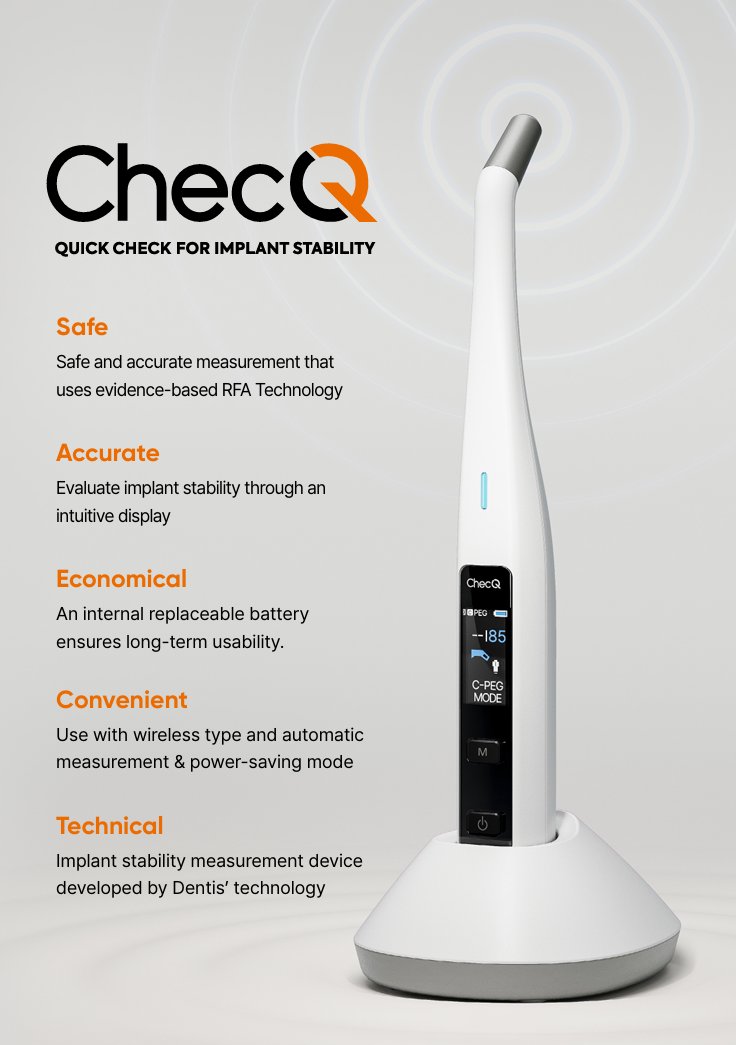

ChecQ

Quick Check for Implant Stability

ChecQ is a wireless resonance frequency analysis (RFA) device by Dentis that measures implant stability in real time — giving you an ISQ value from 1 to 99 instantly, without contact, at chairside.

Inquire About ChecQ Learn More

ChecQ — Quick Check for Implant Stability

🛡️

Safe & Accurate

Evidence-based RFA technology. Non-contact measurement. Accuracy: ISQ ±1.

🎯

Accurate Display

ISQ value shown with color-coded LED: High (70–99), Medium (60–69), Low (1–59).

💡

Convenient

Wireless type. Auto measurement mode when PEG detected. Power-saving mode built in.

🔋

Economical

Internal replaceable lithium polymer battery (550mAh). Long-term usability, A/S supported.

How It Works

Non-Contact RFA Measurement

01

Attach ChecQ PEG

Screw the titanium ChecQ PEG Driver onto the implant. PEG maintains its shape and measurement value even after repeated use.

02

Position ChecQ Device

Hold the ChecQ wand 2–3mm from the PEG at approximately 45°. No contact with the implant or soft tissue required.

03

Auto Measurement

ChecQ automatically detects the PEG and switches to measurement mode. ISQ value appears on the display with color classification.

04

Read ISQ Value

Color-coded result: Green (High 70–99), Orange (Medium 60–69), Red (Low 1–59). Use Mode button for manual measurement mode.

Technical Specifications

Composition & Specs

Part	Specification	Value
Main Body	ISQ Range	1 – 99 (±1 accuracy)
	Battery	DC 3.7V · 550mAh lithium polymer
	Charge Time	3 hours
	Weight / Size	70g · 226 × 25 × 26mm
Charging Stand	Weight / Size	73g · 106 × 82 × 45mm
Adapter	Input	AC 100–240V · 50/60Hz
	Output	DC 5V · 2A
	Weight / Size	130g · 78 × 46 × 80mm (cable 1,525mm)
Demo PEG	Weight / Size	14g · 20 × 20 × 39mm
ChecQ PEG Driver	Material	Titanium
	Size	1g · 5 × 5 × 15mm

ISQ Stability Scale

          1–59 · Low Stability
          60–69 · Medium
          70–99 · High Stability


What's in the Box

▸Main Body (ChecQ device)

▸Charging Stand

▸Adapter (universal AC)

▸Demo PEG

▸ChecQ PEG Driver (Ti)

▸User Manual

Manufactured by

DENTIS Co., Ltd.

Distributed in PH by

Digiscope
