Print ceramic crowns chairside in as little as 10 minutes. Compact, leveling-free, 2-in-1 printing and curing — the complete dental 3D workflow in a single desktop unit.

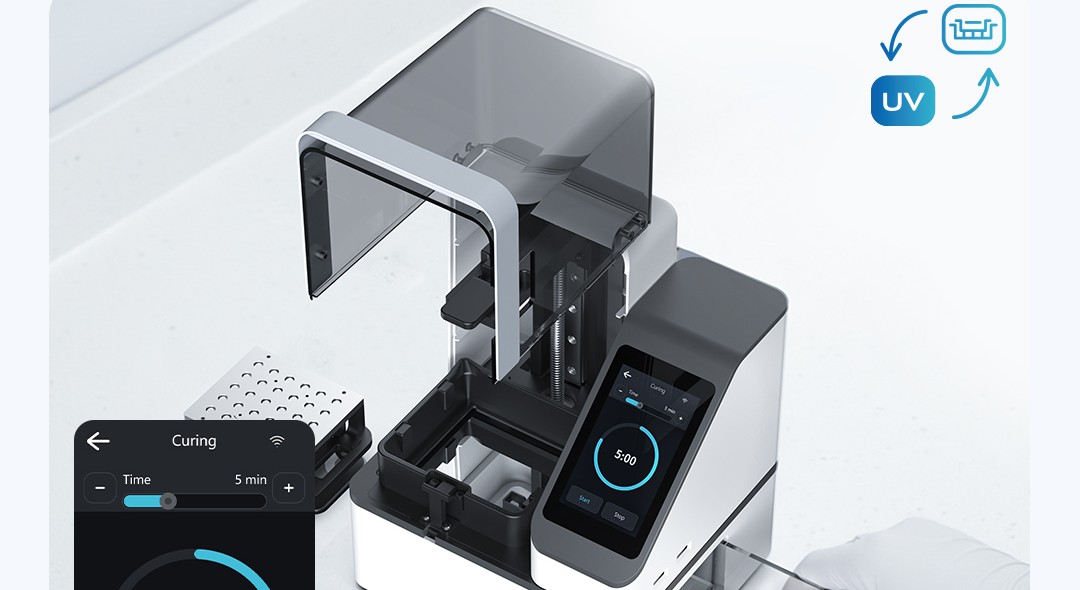

PioNext Mini integrates printing and UV curing into a single compact unit — eliminating the need for a separate curing machine and streamlining the entire clinical workflow.
By combining printing and curing into one system, PioNext Mini eliminates the need for an external curing unit, simplifying workflow and improving chairside efficiency.
Delivers a ceramic crown in as little as 10 minutes under standard conditions (0.1mm layer thickness, model ≤15mm). High-speed exposure shortens single-layer curing time.
19μm XY axis and 10μm Z-axis accuracy. Clearly reproduces restoration margins at 0.3mm ultra-thin veneers, minimizing clinical adjustments.
Supports both 385nm (high precision) and 405nm (fast) wavelengths. Intelligent switching via PioCreat BOX slicing software ensures compatibility with a wide range of dental resins.
Footprint comparable to half an A4 sheet (200×170×241mm). Designed for easy mobility between rooms — ideal for chairside procedures and flexible clinical workflows.
Maintains a controlled printing environment for improved resin flow, smoother layers, and reduced visible layer lines — especially important for low-temperature clinical settings.

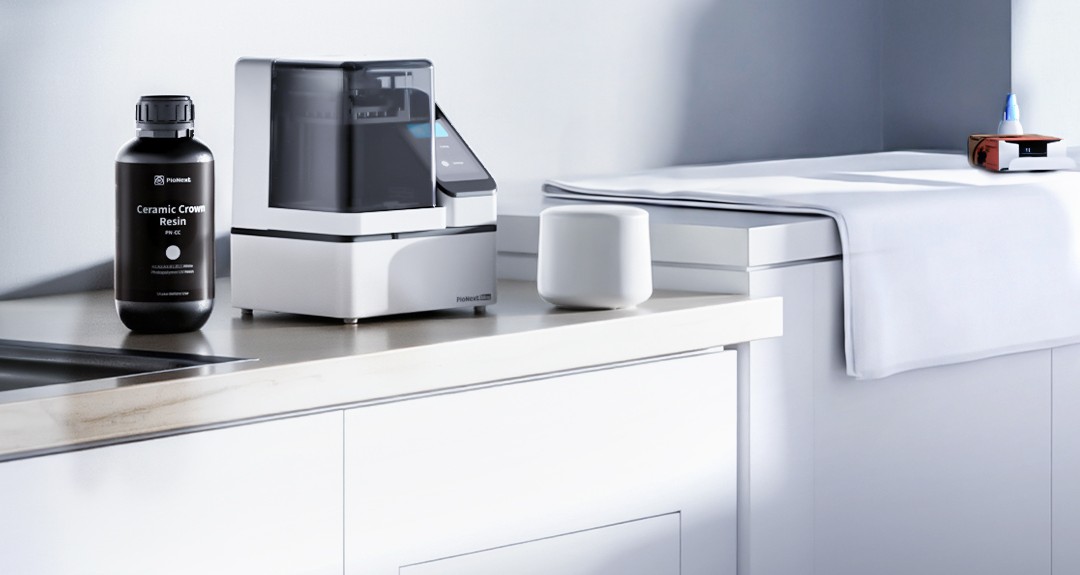

PioNext Mini is built for clinics that value efficiency and simplicity. Its footprint is comparable to half an A4 sheet, allowing it to integrate seamlessly into daily clinical settings — an ideal choice for chairside procedures.
Machine size 200×170×241mm. Takes up minimal counter space and can sit directly beside the dental chair.
Lightweight enough to carry between operatories. No fixed installation required — supports flexible chairside applications across your clinic.
Designed to minimize odor and operate cleanly within a clinical environment. No dedicated ventilation room required.

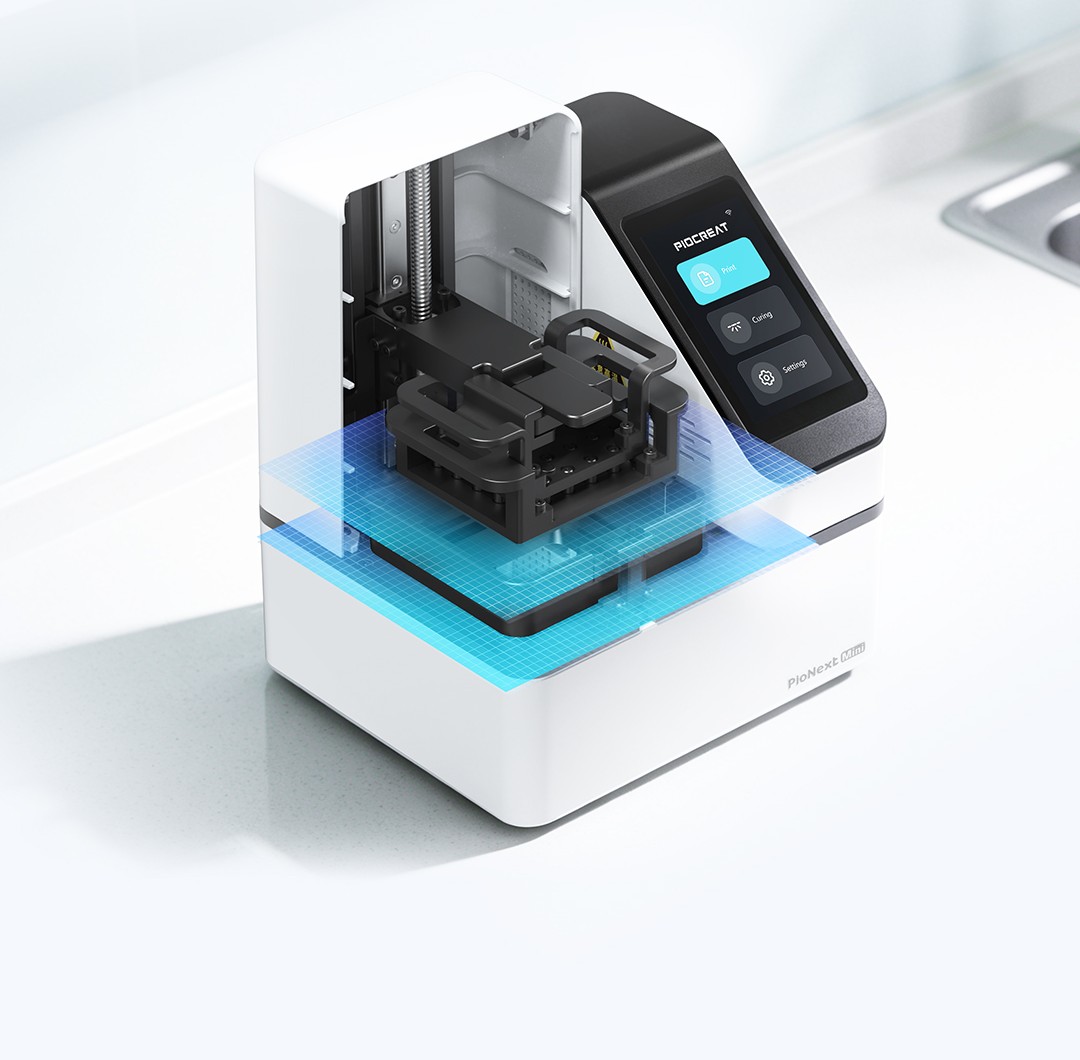

The leveling-free design is achieved through four-point alignment between the platform and resin vat. Start printing right away — eliminating complex leveling steps or additional learning curve.
Platform and resin vat align automatically. No manual bed leveling, no test prints needed before starting a job.
The resin vat features a quick-release design for instant material changes. Reduces wear from scraping, ensures stable and smooth printing performance.
Build plate releases quickly for fast model removal. Keeps workflow efficient and stress-free between prints.
Advanced amber screen technology substantially enhances resistance to UV light exposure — 2× the lifespan of conventional LCD screens, protecting your investment.
Every design decision in PioNext Mini targets print quality — from the heated chamber to the dual wavelength source and amber screen technology.

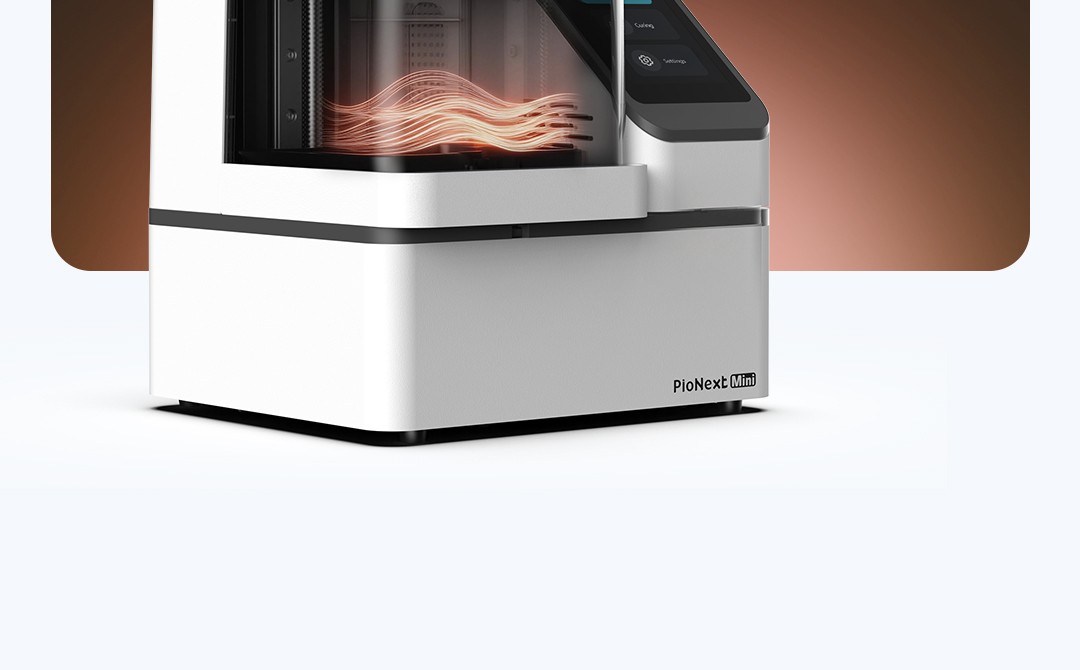

The printing environment maintains up to 35°C for improved resin flow and smoother layers. Reduces visible layer lines and enhances overall print quality — critical for fine restorations.
Clearly reproduces restoration margins. Maintains consistent dimensional accuracy and fit, minimizing the need for clinical adjustments and follow-up modifications.
Switch to 385nm for maximum detail accuracy — ideal for crowns, veneers, and surgical guides requiring tight tolerances.
Use 405nm for rapid production of models, splints, and retainers where throughput matters more than ultra-fine detail.
Self-developed PioCreat BOX slicing software — combined with multiple proprietary technologies, it greatly reduces layering artifacts. Text is clearer, holes are rounder.
Automatically orients, supports, and slices your model with a single click. No manual support placement needed.
Send print jobs wirelessly from your design workstation directly to the PioNext Mini — no USB required.
Pre-configured resin profiles for all certified PioCreat dental resins. Select material and print — no manual calibration.
Antialiasing and circular bore compensation ensure cleaner edges and more accurate round features in your prints.
Intelligent wavelength switching improves material compatibility, print quality, and overall reliability across resin types.
3.97-inch capacitive color touch screen with Print, Curing, and Settings modes. Intuitive touch-and-go — ready out of the box.
PioNext Mini and its certified resin ecosystem support over 20 dental applications — from restorations and prosthetics to orthodontics and surgical guides.
Crown
Veneer
Onlays / Inlays
Crown Bridge
Surgical Guide
Clear Aligner / Retainer
Occlusal Splints
Night Guard
Early Treatment Appliance
Removable Partial Denture
Dental Model
Temporary Restoration
Officially certified dental resins with multiple accreditations — compatible with the full range of chairside workflows. Also compatible with select third-party materials.
High-strength ceramic-filled resin for single crowns and full-contour restorations
Multi-unit bridge frameworks and individual crown fabrication
Hard acrylic-like resin for occlusal splints and night guards
Bis-GMA temporary crown and bridge material for provisional restorations
Transparent flexible resin for aligner models and retainers
Flexible, biocompatible resin for removable partial denture frameworks

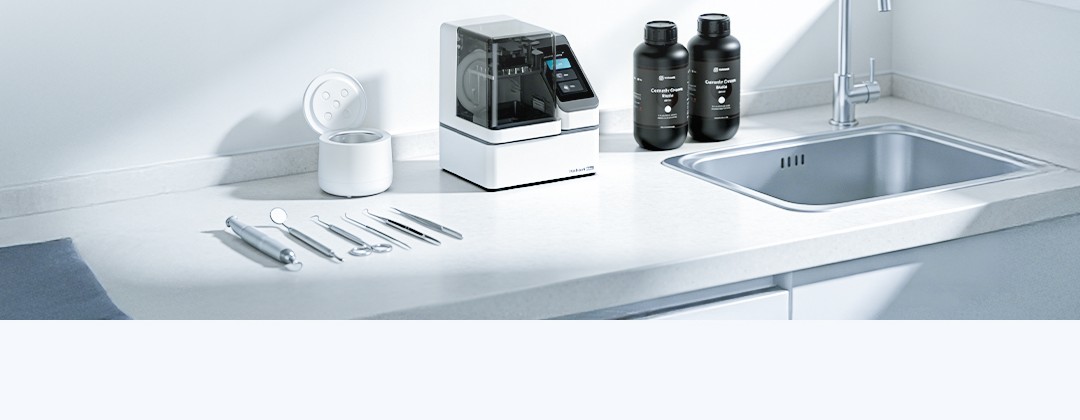

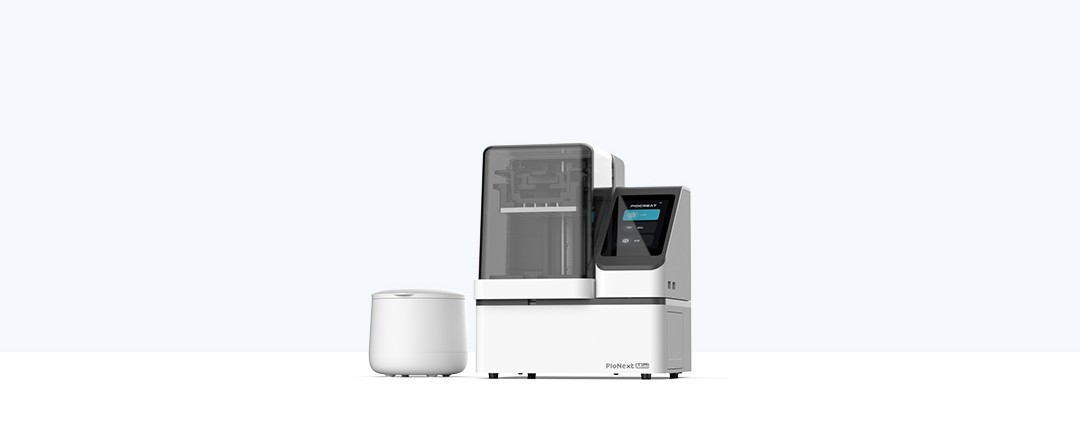

Standard small-sized cleaning machine designed to work with the PioNext Mini. Ideal for cleaning small-batch prints with a fixed 3-minute operating cycle.
180-second cleaning cycle removes uncured resin from freshly printed parts — consistent and repeatable every time.
S30408 stainless steel tank (80×80×39mm) resists corrosion from isopropyl alcohol and cleaning solvents.
110×110×97mm footprint. 0.281kg. Sits alongside the printer without cluttering your workspace.
| Parameter | Specification |
|---|---|
| Model | PioNext Mini |
| Molding Technology | LCD |
| Printing Size | 80 × 70 × 80 mm |
| Machine Size | 200 × 170 × 241 mm |
| Package Size | 310 × 307 × 340 mm |
| XY-axis Accuracy | 14 × 19 μm |
| Resolution | 8520 × 4320 px |
| Print Speed | Max. 60 mm/h (0.1mm layer thickness) |
| Layer Thickness | 0.01 – 0.1 mm |
| Touch Screen | 3.97-inch Capacitive Color Touch Screen |
| Light Source | 385 nm (High Precision) · 405 nm (Fast) |
| Printing Method | U Disk / Wi-Fi |
| Slicer Software | PioCreat BOX (PioNext BOX) |
| File Format | .cxdlpv4 |
| Rated Voltage | 100–240V~ · 50/60Hz |
| Rated Power | 120W |
| Net Weight | 4.86 kg |
| Gross Weight | 6.8 kg |
| Certifications | ISO · FDA |
Request a demo, pricing, or a clinical consultation from Digiscope — your authorized partner in the Philippines.
